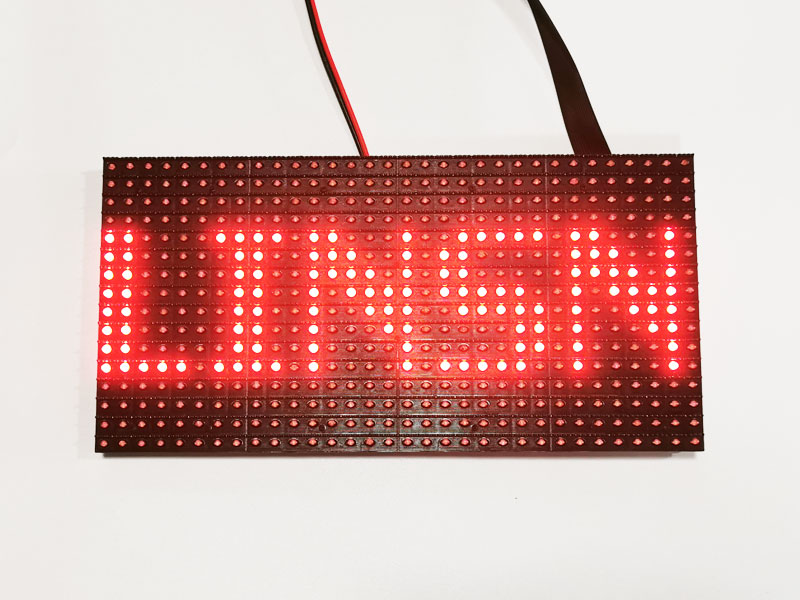

P10mm Single Red Color LED Module
P10mm
- Pixel Pitch: 10mm
- Module Size: 320*160mm
- Module Resolution: 32*16
- In Stock
- CE,RoHS,FCC Approved
- 2 Years Warranty
320mmx160mm P10mm Single Red Color led module with High Brightness and long veiwing distance. 32x16dots PH10mm red color LED screen panel LED sign module with 2 Years Warranty.
Remark:
Module size:320x160mm, including the DATA and Power Cable for LED Modules.
P10mm Red Color LED Module Parameters:
1. Pixel | |
Pixel Led | 546 |
Pixel composition | RED |
2. Module | |
Module Size（mm） | 320(L) * 160(H) * 20(T) |
Module Pixels (dot) | 32(L) * 16(H) |
Electricity parameter | |
Density (Real) (dots/m^2) | 10,000 |
Interface | Standard 12PIN interface |
Viewing angle(angle) | 110 (horizontal); 70(vertical) |
Best viewing distance(m) | 6-100 |
Driving mode | Constant driving 1/4 scanning |
Control mode | Asynchronous transfer |
Protection | Semi-outdoor |
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
