N43 SERIES LED DISPLAY
400×300mm Small Pixel LED Display
- 4:3 ratio Cabinet Design
- SMD 3 in 1 LED Encapsulation technology
- Frontal Service Design for Easy Installation
- CE, RoHS, FCC Approved
- 3 Year Warranty and 5% Spare Part
4:3 HD LED Display

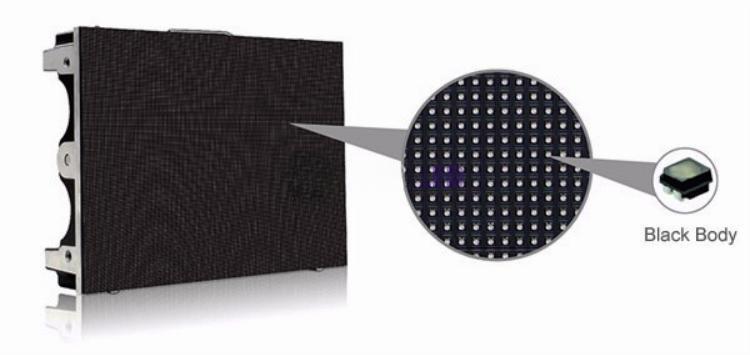

400×300mm Small Pixel LED Display adopts high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider; Low brightness with high gray level, more delicate display performance
High contrast and high image quality.
High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image
High Refresh Rate to 3840 HZ
the display adopt MBI5153 High Refresh Driving IC, it is stable, no ripples, no flicker, display real and natural.

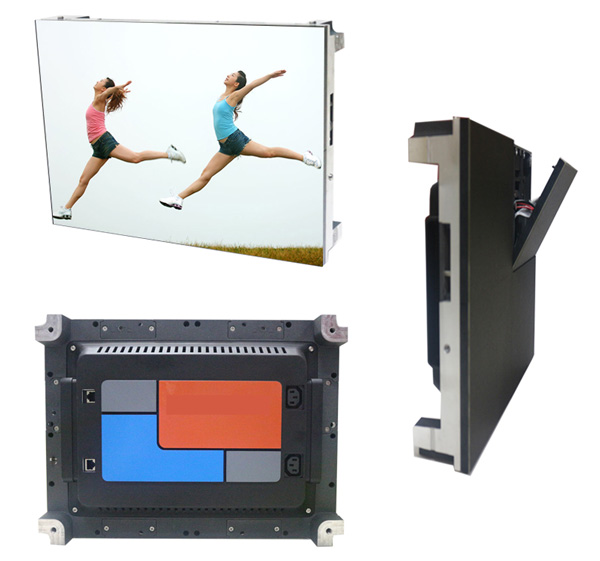

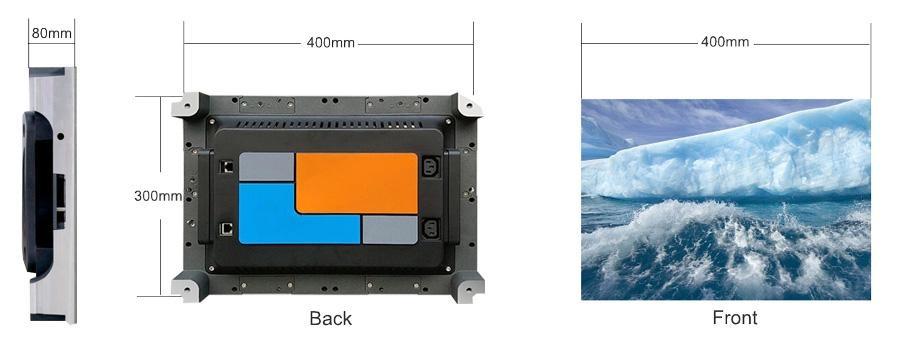

4 : 3 Cabinet Size Design
4:3 design HD LED display. Cabinet’s 4:3 resolution is specialized for command center. Perfect replacement for LCD display.
Die cast aluminum cabinet, guarantee you a flat and seamless screen. Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.

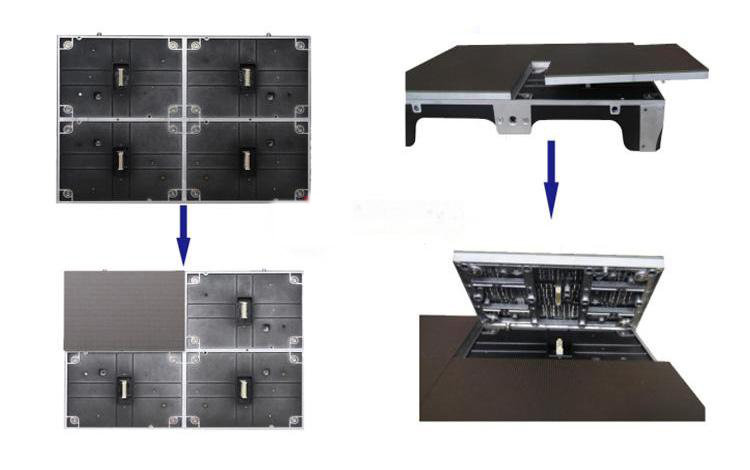

Frontal Service Cabinet Design
Frontal accessed LED Module Design,easy installation,removal and maintenance.
Specification
| Pixel Pitch | 1.25mm | 1.56mm | 1.667mm | 1.923mm | 2.5mm |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pixel Density | 640000 | 409600 | 360000 | 270400 | 160000 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1010 |
| MAX Power Con | 680w/Sq.m | 640w/Sq.m | 620w/Sq.m | 600w/Sq.m | 580w/Sq.m |
| AVG Power Con | 350w/sq.m320w/sq.m | 320w/sq.m | 300w/sq.m | 280w/sq.m | 260w/sq.m |
| Module Dimension | 200x150mm | 200x150mm | 200x150mm | 200x150mm | 200x150mm |
| Module Resolution | 160×120 dots | 128×96 dots | 120×90 dots | 104×78 dots | 80×60 dots |
| Cabinet Dimension | 400x300x77mm | ||||
| Cabinet Resolution | 320×240 dots | 256×192 dots | 240×180 dots | 208x156dots | 160x120dots |
| Cabinet Weight | 5.85kg | ||||
| Service Access | Front | ||||
| Rotation Angle | -10° and +10° | ||||
| Brightness (nits) | ≥1000 | ||||
| Refresh Rate (HZ) | 3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160 / 160 | ||||
| IP Rate | IP54 | ||||
| Input Voltage (AC) | 110 / 240V | ||||
