MA480-C SERIES LED DISPLAY
Fine Pixel Pitch Rental LED Display
- 480*480mm Cabinet Standard Size
- SMD 3 in 1 LED Encapsulation technology

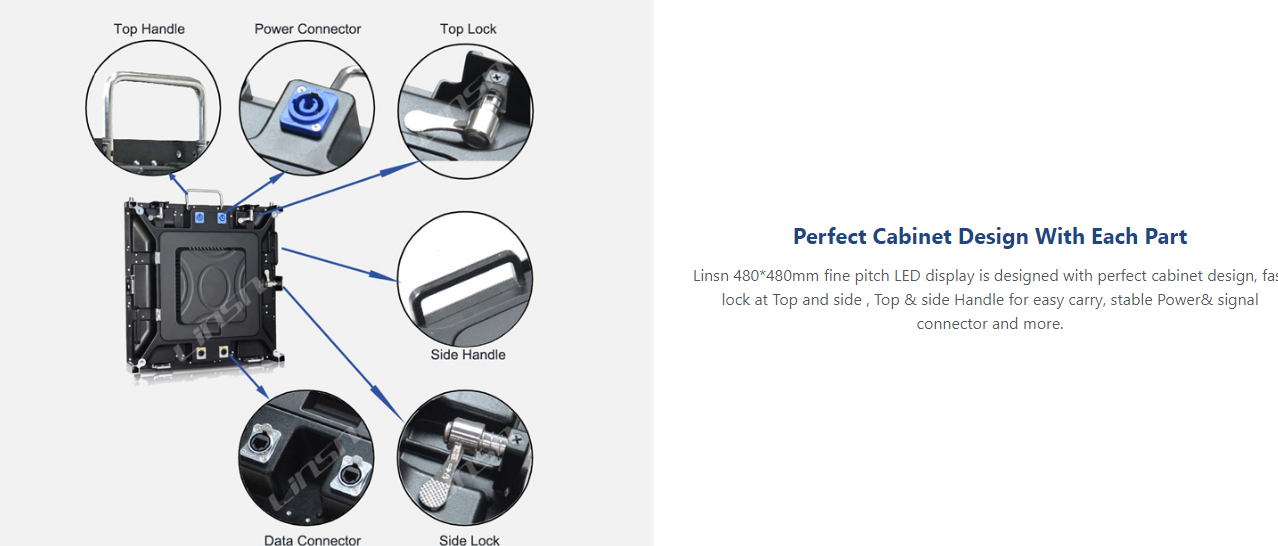

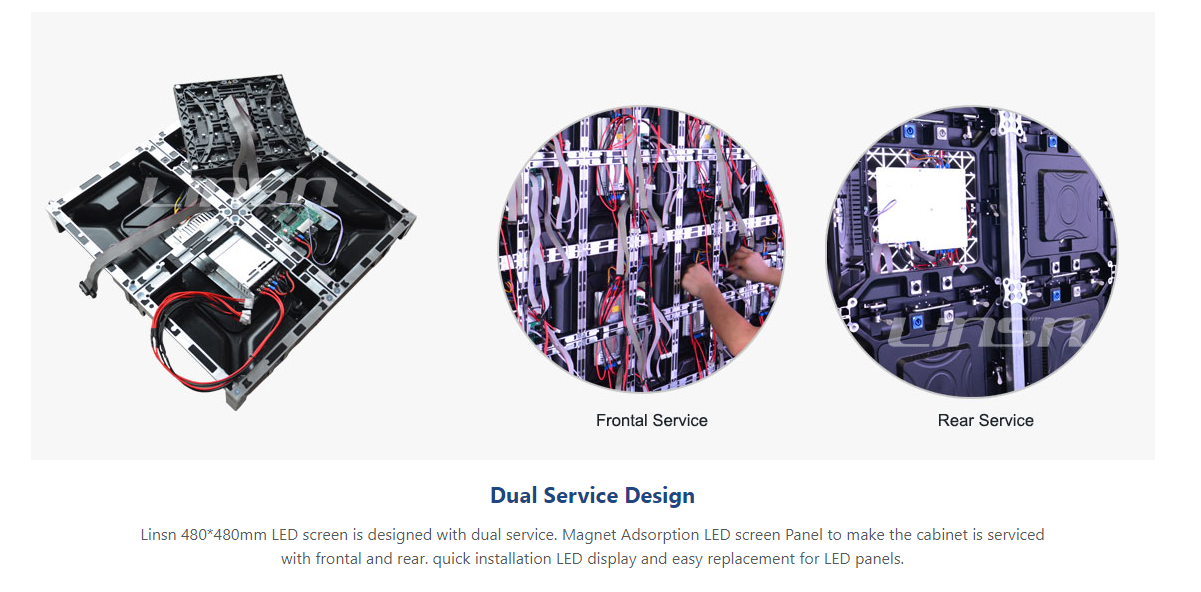

- Dual Service with Frontal and Real Maintenance
- P1.5, P1.66, P1.875, P2, P2.5, P3 is available
- CE,Rohs Approved
- 3 Year Warranty and 5% Spare Part
Specification
| Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
|---|---|---|---|---|
| Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 800 – 1000 nits; | |||
| Module size | 240*240mm | |||
| Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |

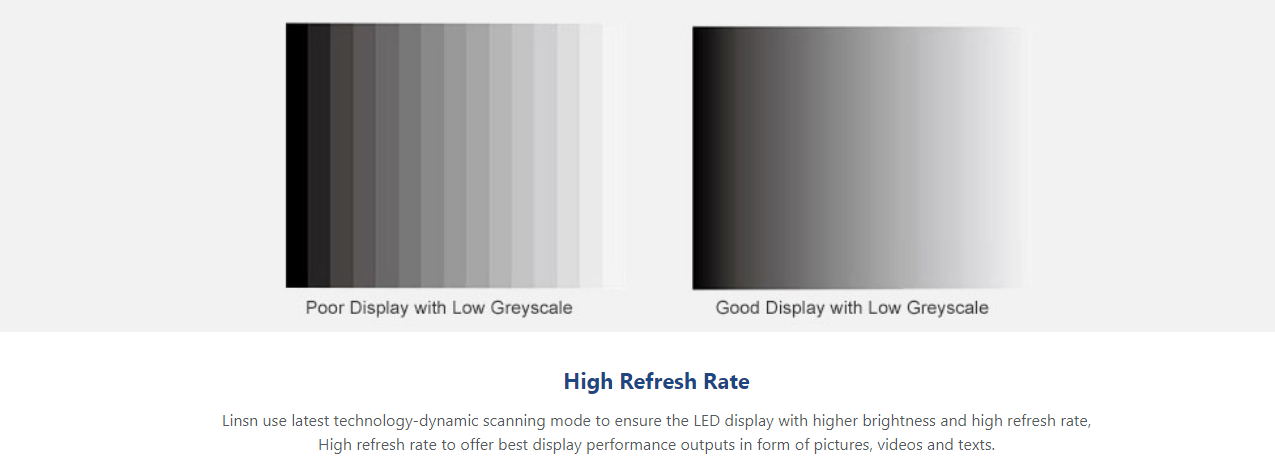

| Refresh rate | 960-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 16 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||

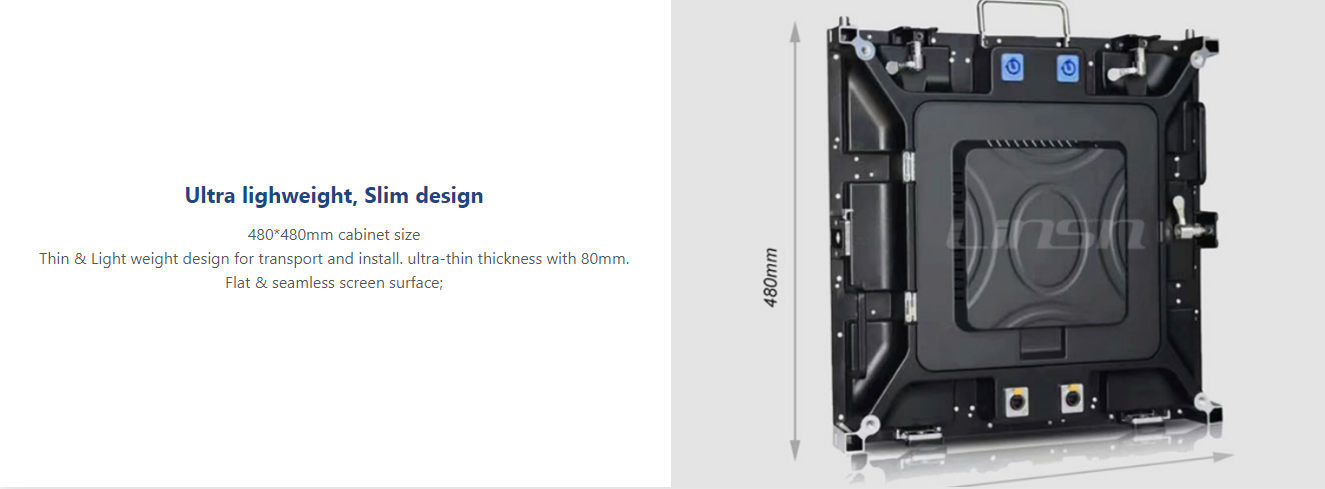

| Dimensions | 480 x 480 x 80 mm (WxHxD) | |||
| Weight | 5.5 kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
Tech Support
Xingwei LED has a professional technical support team to solve any tech problem for you, tech support covers installation, configuring, and anything about LED display, please check our contact us page.
